Temperature Mapping & Validation Data Logger

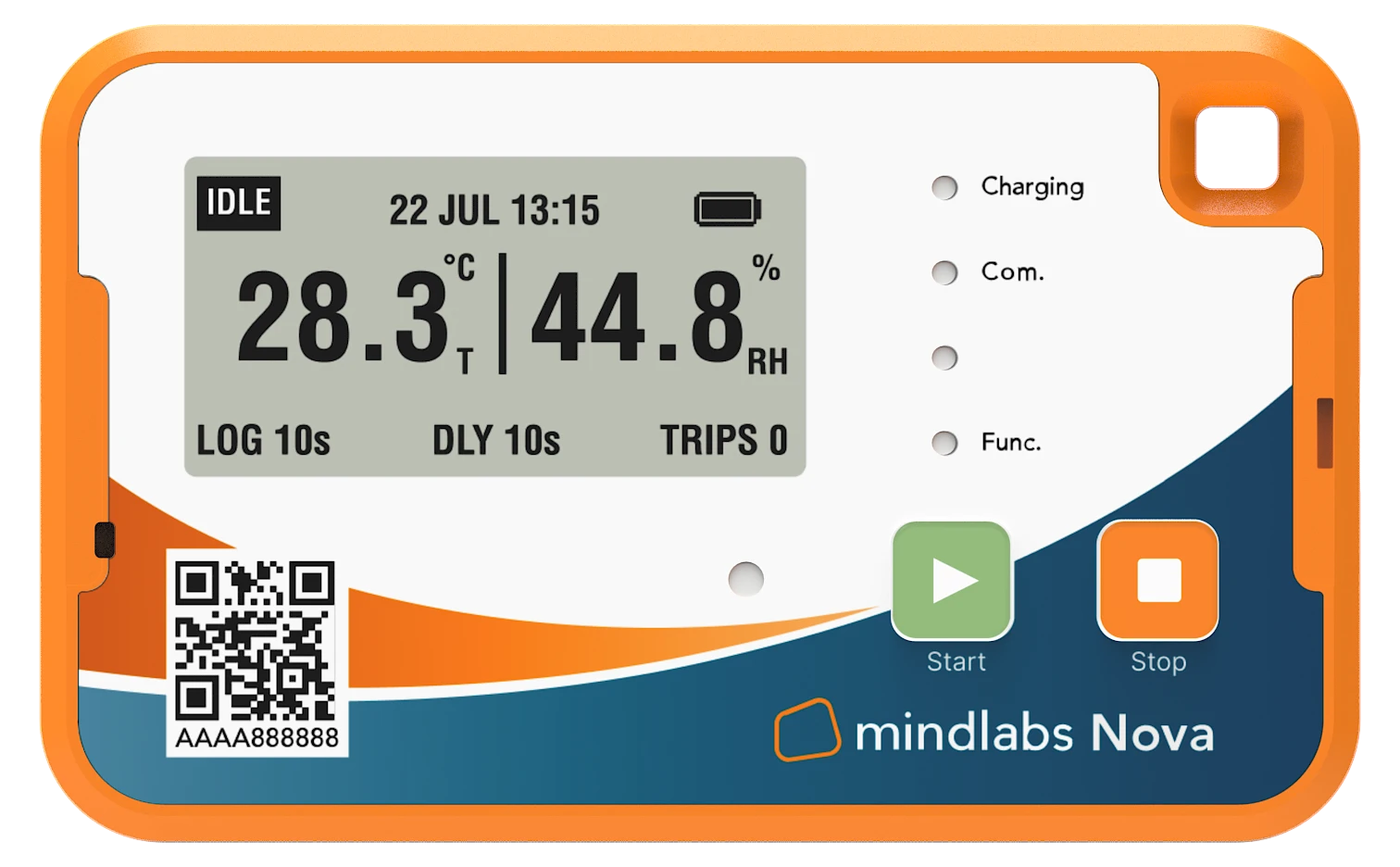

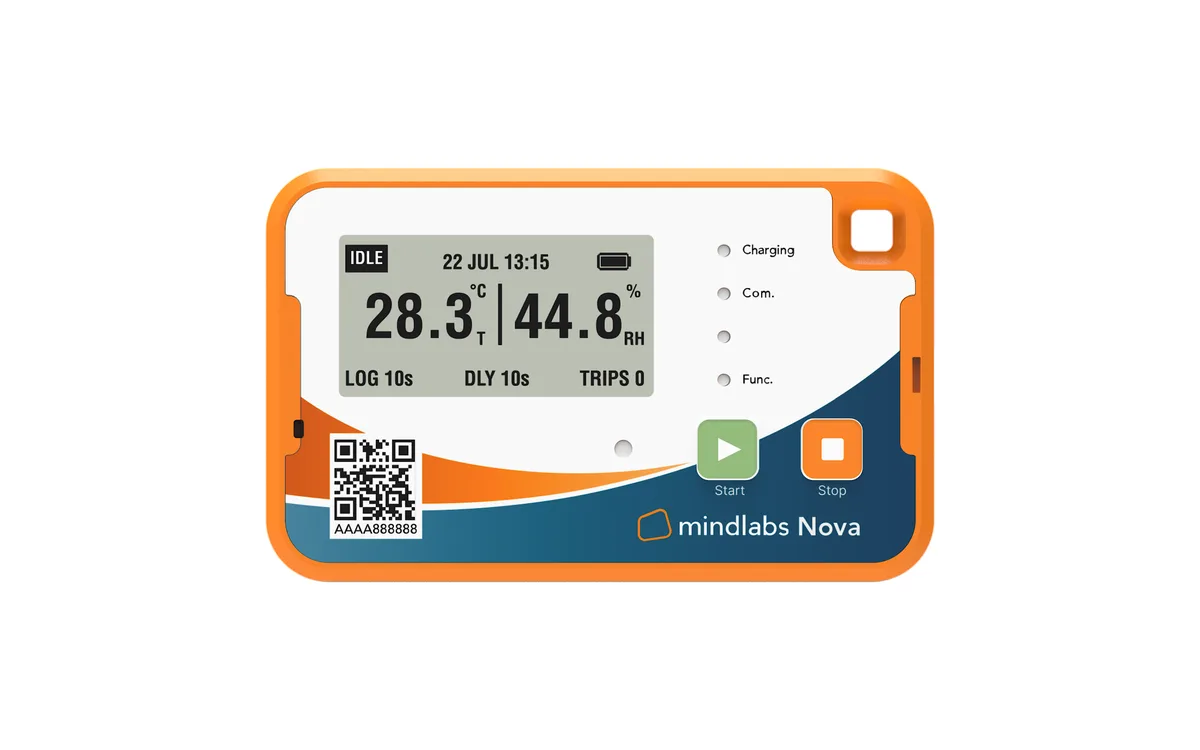

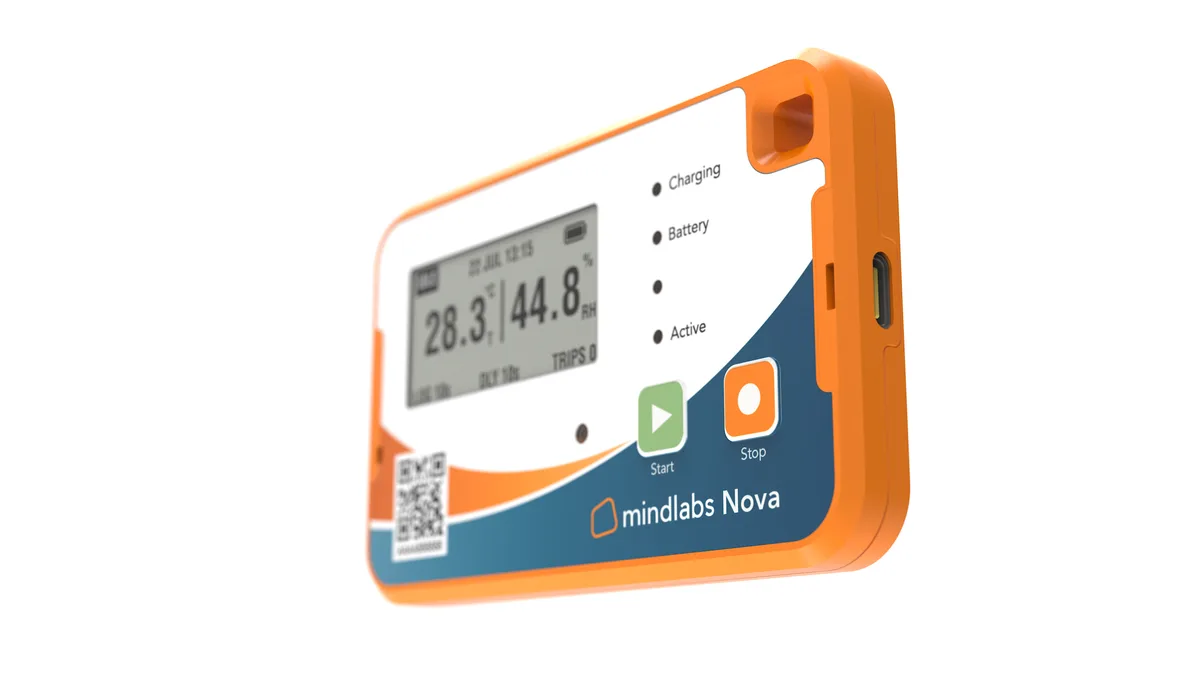

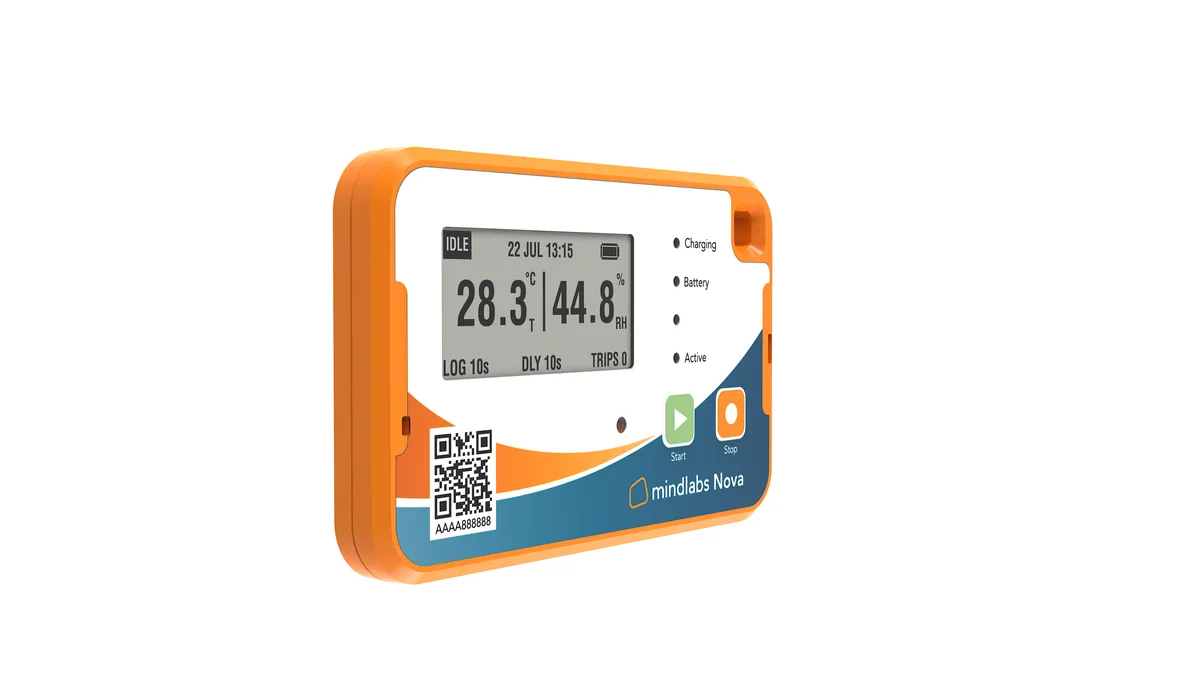

Mindlabs Nova · Temperature & humidity, up to 20 months recording
Mindlabs Nova is an offline, multi-use temperature and humidity data logger for validation studies, temperature mapping and long-term environmental monitoring. It stores up to 85,995 readings (about 20 months at a 10-minute interval), recharges over USB-C for reuse across studies, and generates 21 CFR Part 11 compliant PDF and CSV reports as soon as you plug it in after recording ends.
Optimized For
Calibration Labs
Temperature Mapping
Pharma QA
CROs
1 / 6
Features
Why Choose Nova?
Built for precise, long-duration validation and mapping studies
High-Accuracy Sensors
Temperature ±0.5°C and humidity ±3% RH.
85,995 Readings
About 20 months of data at a 10-minute interval.
1-Year Battery
Rechargeable 3000 mAh Li-ion, charged over USB-C.
Always-On Display
Live readings and recording status at a glance.
Auto PDF & CSV Reports
Generated when you plug in over USB-C after recording ends.
21 CFR Part 11 Compliant
Secure records and audit-ready reports.
Configurable Alarms
Low and high thresholds, with violations marked on screen.
Reusable Across Studies
Recharge and redeploy for every new study.
In Action
Where Nova Is Used: Mapping, Validation and Stability Studies
An offline, multi-use temperature and humidity data logger for regulated storage, labs and long-duration studies.

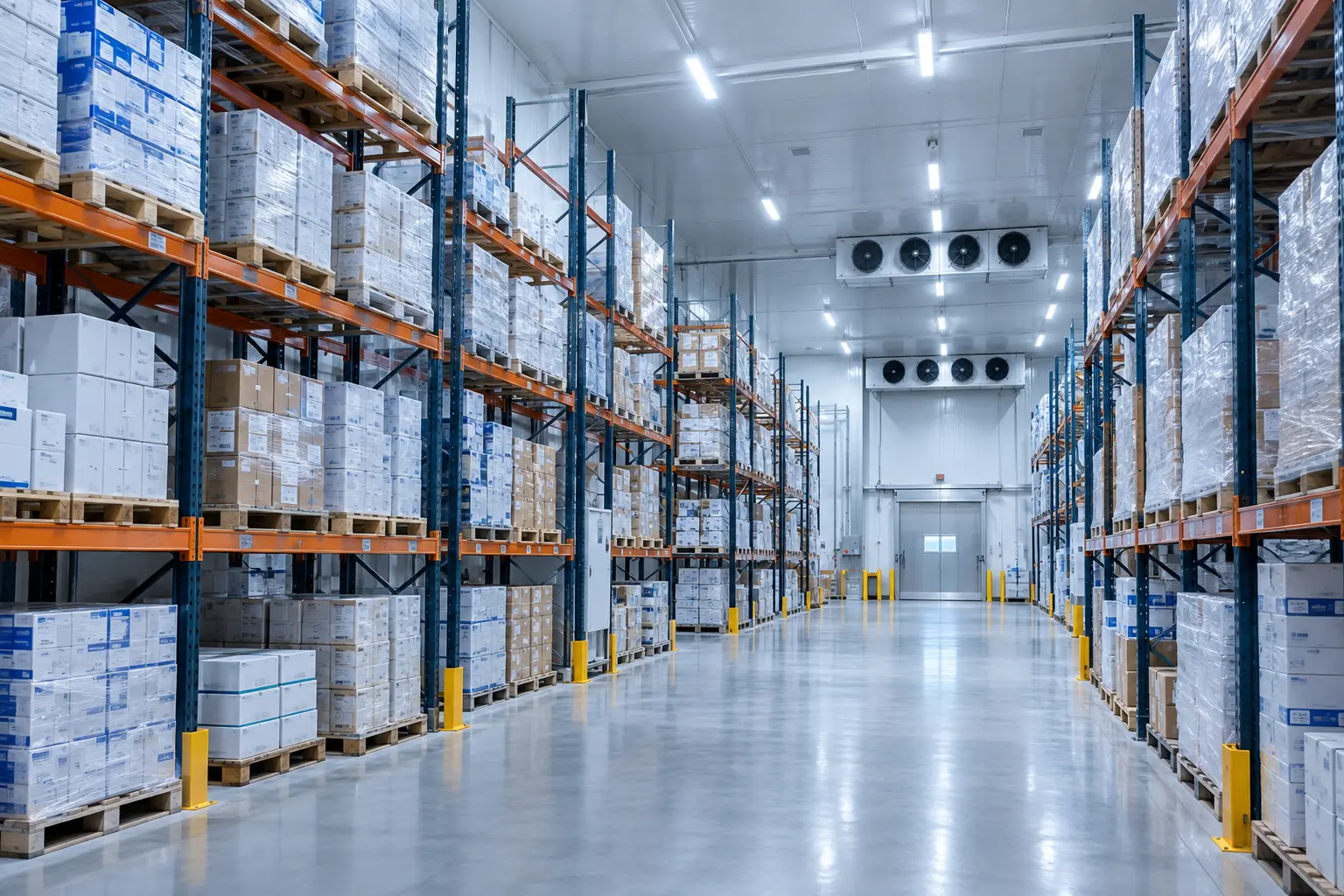

Warehouse & Cold Room Temperature Mapping
Use multiple Nova data loggers for warehouse and cold room temperature mapping, placed at corners, shelves, doors and varying heights to locate hot and cold spots and support GDP storage qualification.

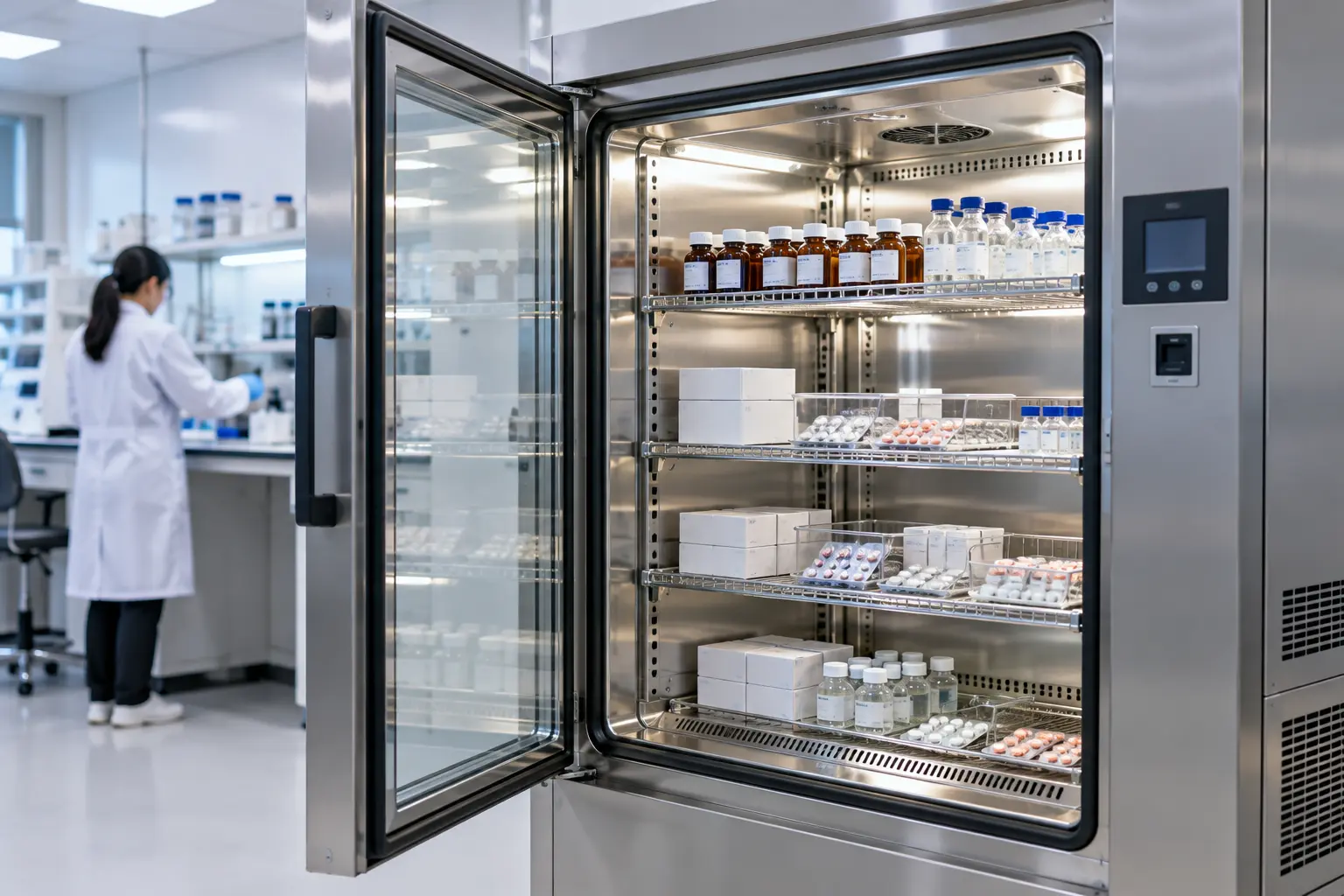

Stability Chamber Monitoring
Record temperature and humidity through long-duration stability studies, including common ICH conditions like 25°C/60% RH and 40°C/75% RH, with up to 85,995 readings per logger.

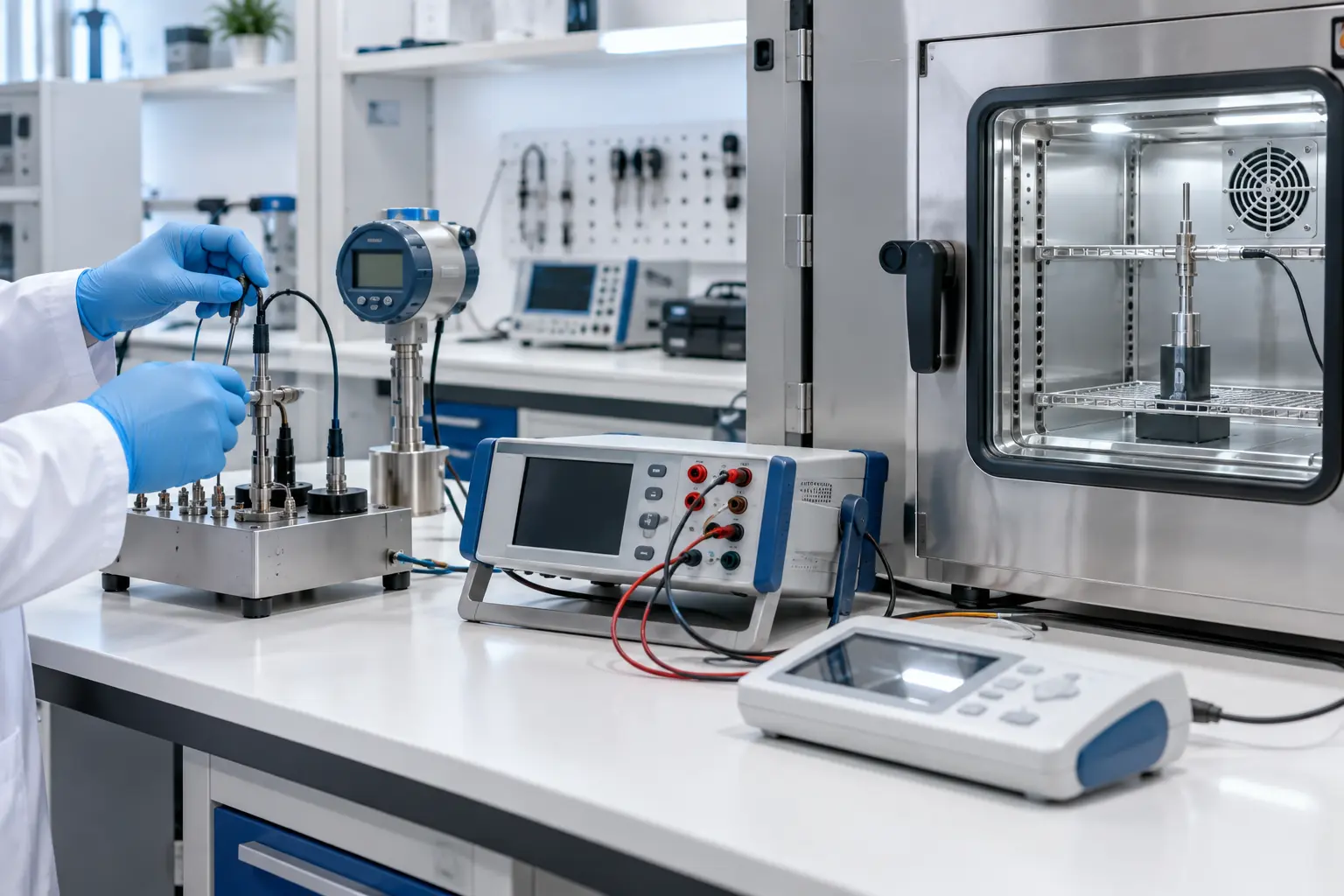

Calibration & QC Labs
Log ambient temperature and humidity in calibration and quality control labs, keeping a continuous, audit-ready record of lab conditions during testing and equipment verification.

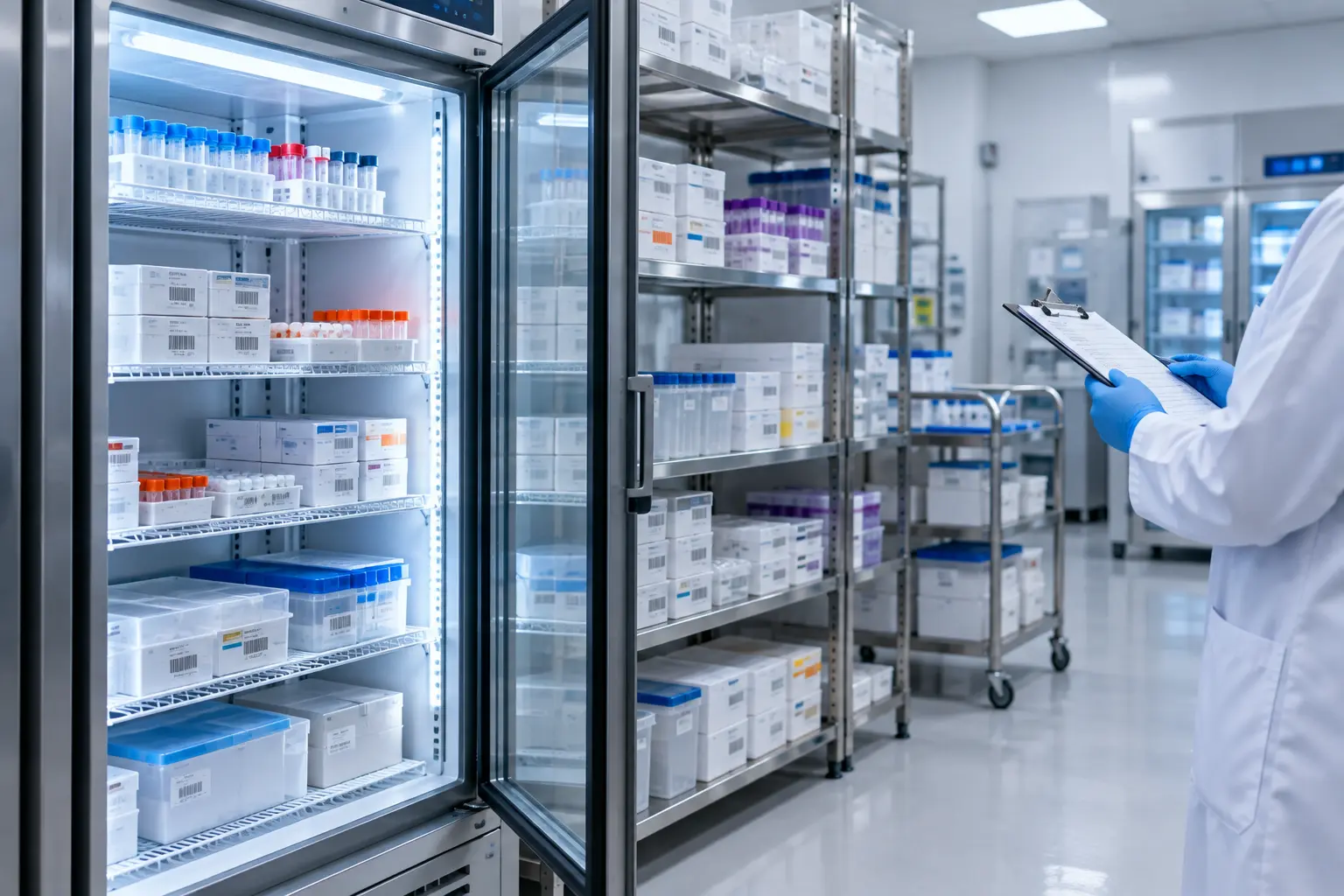

Clinical Trial Sample Storage
Keep 21 CFR Part 11 compliant temperature and humidity records for clinical trial samples in CRO storage rooms, refrigerators and sample handling areas.
How It Works
Start, Record, Report
1
Start
Press the Start button for 3 seconds to begin recording.
2
Place
Mount Nova in the room, chamber or storage unit under study.
3
Report
Press Stop for 3 seconds, then connect via USB-C to get your PDF and CSV report.
Demo Video

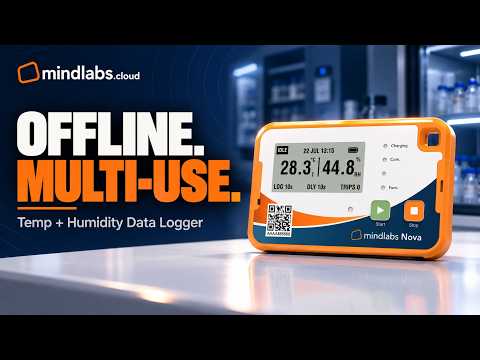

Mindlabs Nova Demo Video
Watch a product demo covering starting a study and generating your report.
Specs
Technical Specifications
Sensor Performance
- Temperature Range
- -30°C to 70°C
- Temp Accuracy
- ±0.5°C
- Temp Resolution
- 0.1°C
- Humidity Range
- 0% to 100% RH
- Humidity Accuracy
- ±3%
- Humidity Resolution
- 1%
Data Logging
- Logging Interval
- 10 min default (configurable from 1 min)
- Storage Capacity
- 85,995 readings
- Recording Duration
- Up to 20 months at a 10-min interval
- Report Generation
- Automatic on USB plug-in after recording ends
- Report Format
- PDF and CSV
Power & Battery
- Battery Type
- Li-ion, 3000 mAh, rechargeable
- Battery Life
- 1 year per charge
- Charging
- USB-C 5V
Display
- Type
- TFT, always on
- Indications
- Current readings, PRE-REC, DELAY, REC and END modes; cross marks for violations
Operational
- Usage
- Multi-use (reusable)
- Start / Stop
- Button press for 3 seconds
- Pre-Cooling Delay
- 30 min default
- Alarms
- Low and high thresholds
- Configuration
- Mindlabs desktop platform
Mechanical
- Dimensions
- 108 × 67 × 11 mm (L × W × D)
- Weight
- 90 g
- Protection Class
- IP65
- Mounting
- Cable zip-tie or adhesive
Certification
- Certifications
- 21 CFR Part 11, EN12830, CE, RoHS, Airline approved
PT-100 Probe
Ultra-Low Freezer Validation with PT-100
Nova works with the PT-100 probe to validate deep freezers and −80°C units. Connect the probe and Nova logs its reading in place of the internal sensor, holding ±0.5°C accuracy at −80°C. Each probe ships with its own calibration certificate, with a calibration point near −80°C. In probe mode, Nova records temperature only, not humidity.
Temperature Mapping
How Many Loggers Do You Need for Temperature Mapping?
The number of loggers depends on the size and layout of the space and on your mapping protocol. A common starting point:
- Place loggers in a grid across the space, at three heights: near the floor, mid-height and near the top of the racking.
- Add loggers at known risk points: corners, doors and loading bays, near cooling units and air vents, near windows and external walls.
- Run the study long enough to capture normal operation, including weekdays, weekends and door-opening patterns, and repeat it in summer and winter.
- Use the results to find hot and cold spots, then place your permanent monitoring sensors there.
WHO TRS 961 Annex 9, Supplement 8 (Temperature mapping of storage areas) is the usual reference for mapping studies. Mindlabs supplies the loggers; your validation team or partner designs and runs the study.
In the Box
What's in the Box
Mindlabs Nova data logger
USB-C cable
Mounting kit (zip-ties and adhesive tape)
Quick-start guide
Every Nova ships with a calibration certificate.
Platform
Mindlabs Desktop Platform
Configure Nova and review every study from your computer.
Trip summary for every recording
Temperature and humidity trend graphs
Violation events marked with exact timestamps
Configurable logging interval, start delay and alarms
One-click PDF and CSV report download
Ready for Regulated Environments
21 CFR Part 11 compliant
Secure electronic records for regulated studies.
EN12830 certified
The European standard for temperature recorders.
Calibration certificate
Included with every device.
CE and RoHS
Certified for safety and restricted substances.
Approved by Major Airlines
Compare
Is Nova Right for You?
Validation, mapping and long-duration studies→ Nova
Real-time alerts for cold rooms, freezers and facilities→ Anchor
Tracking shipments in transit→ Mindlabs Go
Customers
Trusted by 200+ Companies
Pharma, healthcare, food and logistics companies across India and worldwide.
Case Studies
Temperature Mapping Case Study
Biological E
Pharma & vaccinesUses:Mindlabs Nova
Temperature mapping of storage areas, with PDF and CSV reports for audits.
FAQs
Frequently Asked Questions
Everything you need to know about Mindlabs Nova.
Mindlabs Nova is an offline, multi-use temperature and humidity data logger for validation studies, temperature mapping and long-term environmental monitoring in pharmaceutical, healthcare and laboratory environments.
Nova stores up to 85,995 readings, which is about 20 months of data at a 10-minute logging interval. The rechargeable battery lasts up to 1 year per charge and recharges over USB-C.
Yes. Nova produces 21 CFR Part 11 compliant records and reports, making it suitable for regulated validation and monitoring studies. It is also certified to EN12830, CE and RoHS.
No software is needed to generate reports. When recording ends, connect Nova to a computer over USB-C and it automatically generates PDF and CSV reports. The Mindlabs desktop platform is used to configure logging intervals, start delay and alarm thresholds, and to view trend graphs.
Yes. Place multiple Nova loggers across a warehouse, cold room, freezer or stability chamber with the same logging interval, then compare their reports to identify hot and cold spots.
Yes. Every Mindlabs Nova ships with a calibration certificate.
No. Nova records offline and marks violations on its display and in its report. For real-time SMS, email and app alerts from cold rooms, freezers and facilities, Mindlabs Anchor is the right choice.
Mindlabs Nova starts at ₹5,500, excluding taxes and shipping. Contact the Mindlabs team for volume pricing on mapping and validation deployments.
